Reference Documentation
Recommended Tools
- Torx T20 Screwdriver
- Laptop with ethernet capabilities, or with adapter for ethernet
- RJ45 Ethernet cable
Logging into the charger
Follow the Web Portal connection steps for the 7kW (AC7L/C) or 19kW (AC19L) version listed in this article: LiteOn Web Portal Connection
Changing OCPP Settings

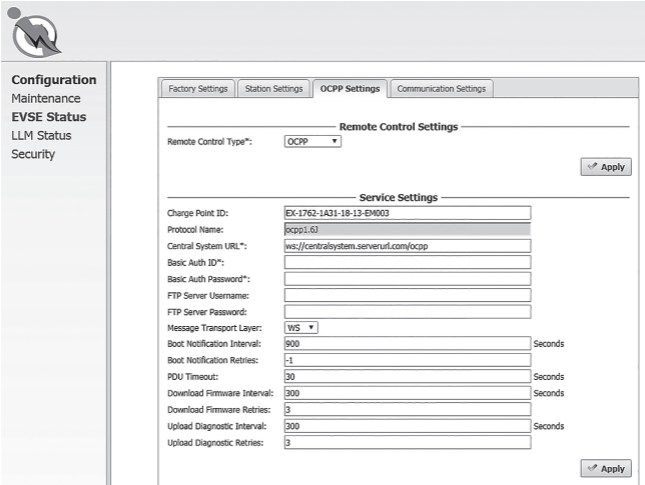

Click on Configuration and then OCPP Settings to bring up the following screen.
Confirm the following settings;
| Remote Control Type | OCPP |
| Charge Point ID | same as the serial number (i.e. EX-1762-IA31-18-13-EM003) |
|
Central System URL |
wss://ocpp.noodoe.com:443 |
Click Apply and reboot the charger.
Once this is complete, follow the steps on the appropriate Noodoe Commissioning Manual to bind the station to a Noodoe QR code and commission it to a site.
