Reference Documentation

AC19L User Manual

Recommended Tools

• Torx T20 Screwdriver
• Laptop with ethernet capabilities, or with adapter for ethernet
• RJ45 Ethernet cable
• RS232 cable
• Firmware file (.tar.gz extension)

Logging into the charger

Step 1

Wi-Fi method:

Connect to the Wi-Fi source the station is broadcasting. The Wi-Fi name and password are based on the serial number of the unit, which can be found on a sticker on the right hand side of the station. The Wi-Fi SSID/name will be "IC80A"+the serial number, & the default password will be the serial number+"@IC80A”.

For example, if the model serial number is:

• EX-1193-1A13-1-1234-2444

The SSID name would be:

• IC80AEX-1193-1A13-1-1234-2444

And the password would be:

• EX-1193-1A13-1-1234-2444@IC80A.

Ethernet Method:

Refer to section 5.1.2 / page 31 in the user manual.

NOTES:

• The name & password are both case sensitive, so it is recommended to type the serial number down & copy / paste it as necessary to avoid small errors.
• Your device will likely mention this connection has no internet, that is intended as your connection is local only.

Step 2

Ensure your TCP/IP settings on your computer are configured for automated IPv4 Dynamic Host Configuration Protocol (DHCP).

How to Change TCP/IP settings on Windows

How to Change TCP/IP settings on Mac

Step 3

Open a web browser and enter the AC19L IP address:

• Wi-Fi method: 10.10.0.1
• Ethernet method: 169.254.XXX.XXX - differs per unit, refer to user manual.

Step 4

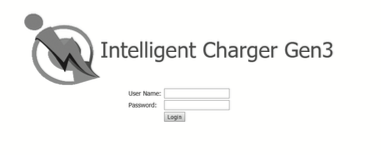

Login to the charger with the default credentials;

• User Name: admin

• Password: howru2RU2IC3

Performing the Firmware Update

Once logged into the web portal for the AC19L Exceed, navigate through the following:

1. Select Maintenance on the left
2. Select Choose File under the firmware upgrade section, and select your firmware file - start a ticket to receive the most up to date firmware. Do not unzip the file, select it as is.
3. Upload - If connected using the Wi-Fi method, it is recommend to stay near the station while uploading to avoid any data loss which might require you to re apply the upgrade.
4. After the firmware upgrade is complete, the station will reboot & you will be prompted to log back in.

You can confirm the firmware upgrade was successful by navigating to Configuration on the left hand side, then Factory Settings. The Firmware Version listed under this section should match the file you uploaded earlier.
