Reference Documentation
- Relevant Zerova DC User Manual
- Firmware Files (Request from Noodoe)
Tools necessary
- Laptop with ethernet capabilities, or with adapter for ethernet
- RJ45 Ethernet cable
- Key for station door
Logging into the station
Step 1

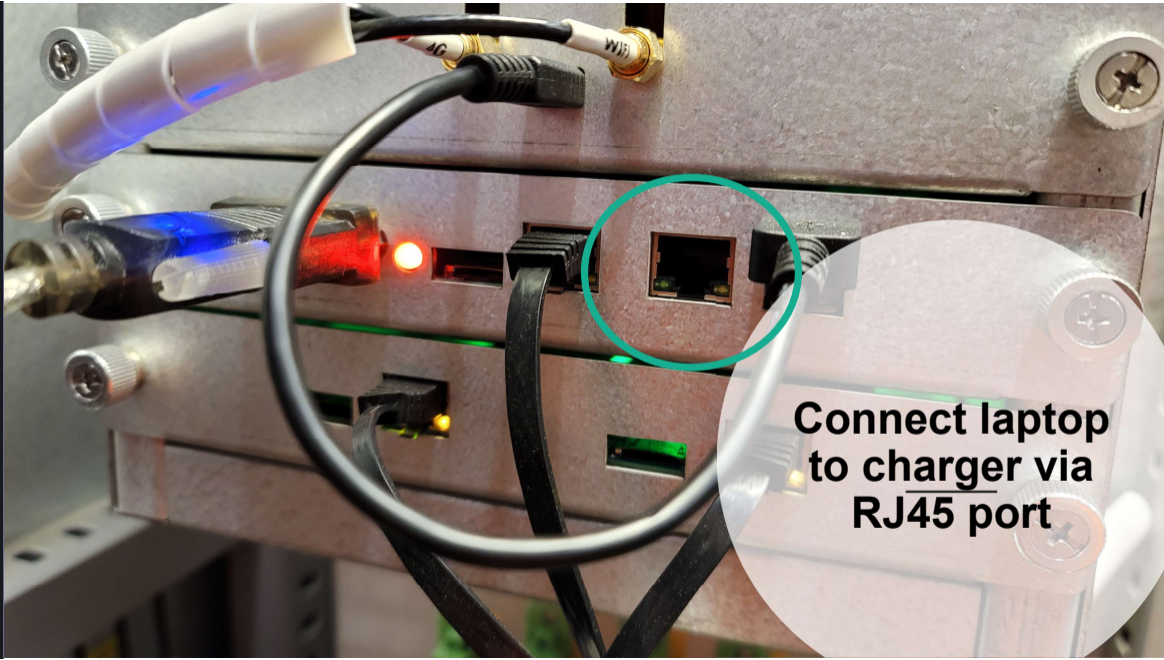

Connect the RJ45 cable to the station. Connect the RJ45 cable to the laptop.
Step 2
Change the IP Address on your computer by accessing the network card settings. Change the TCP / IP automatic IP to fixed IP.
-
- IP Address: 192.168.1.1
- Subnet Mask: 255.255.255.0
How to Change TCP/IP settings on Windows
How to Change TCP/IP settings on Mac
Step 3
Open a browser and enter IP Address 192.168.1.10 to login into the setup page. Use the following credentials to login.
- Account: admin
- Password: 1231231238

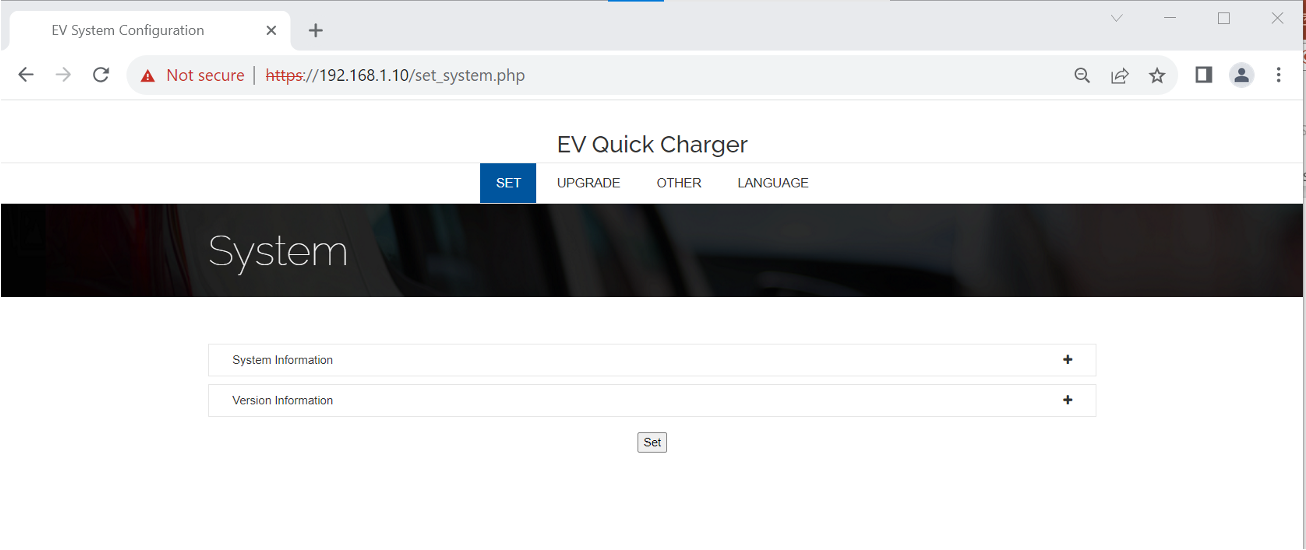

Note: Once you log in you will be presented to the System page. Expand the Version Information section, and confirm the current firmware version. After the firmware has been upgraded below, and the station has rebooted, you should verify the firmware version listed now reflects the version of the provided firmware upgrade file. In some instances the firmware upgrade can fail, and you will need to apply the upgrade again.
For example, if the firmware file you upload is named "CSU_V307...", and the firmware listed in Version Information contains "V3.06...", you may need to reapply the upgrade.
Upgrading the Firmware

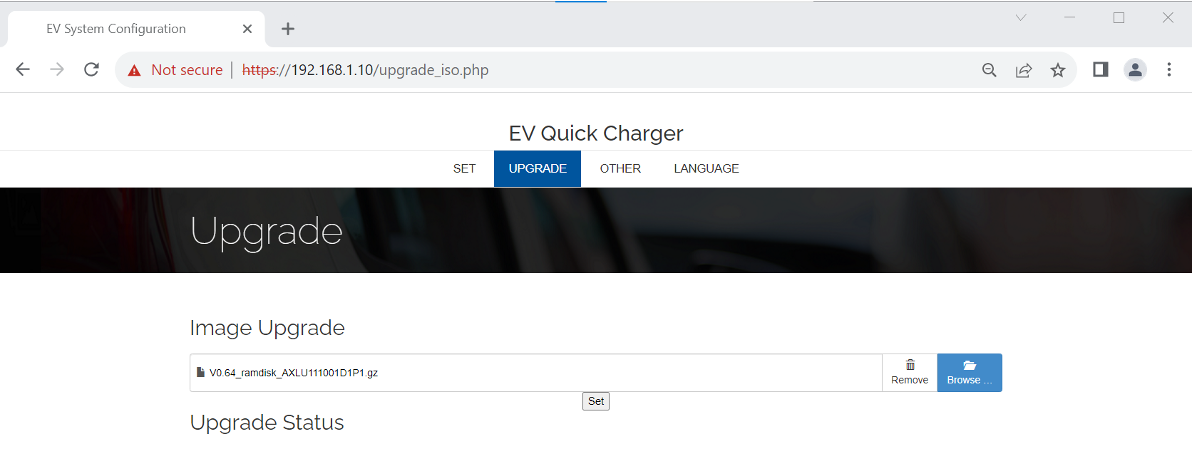

- Go to Upgrade Tab
- Press Browse and select update file
- Press Set
- Wait for countdown to complete (may be up to 5 minutes)

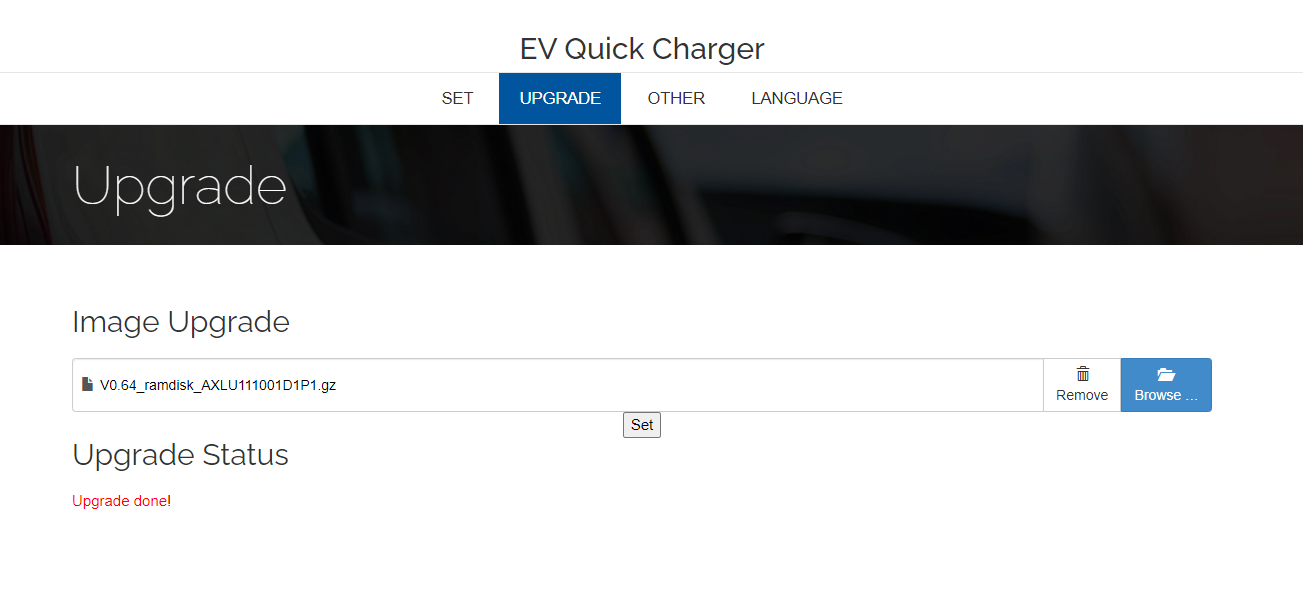

Once the Upgrade is complete, you will see Upgrade done!
