Reference Documentation
Noodoe AC30P User Manual
Zerova AW Series User Manual
Zerova AX Series User Manual
Tools necessary
- Laptop with ethernet capabilities, or with adapter for ethernet
- RJ45 Ethernet cable
Logging into the charger
Step 1
Make sure the charger is powered on. Connect the RJ45 cable to the charger. Connect the RJ45 cable to the laptop.
Step 2
Change the IP Address on your computer by accessing the network card settings. Change the TCP / IP automatic IP to fixed IP.
-
- IP Address: 192.168.1.1
- Subnet Mask: 255.255.255.0
How to Change TCP/IP settings on Windows
How to Change TCP/IP settings on Mac
Step 3
Open a browser and enter IP Address 192.168.1.10 to login into the setup page. Use the following credentials to login.
- Account: admin
- Password: 1231231238
Wi-Fi Setup

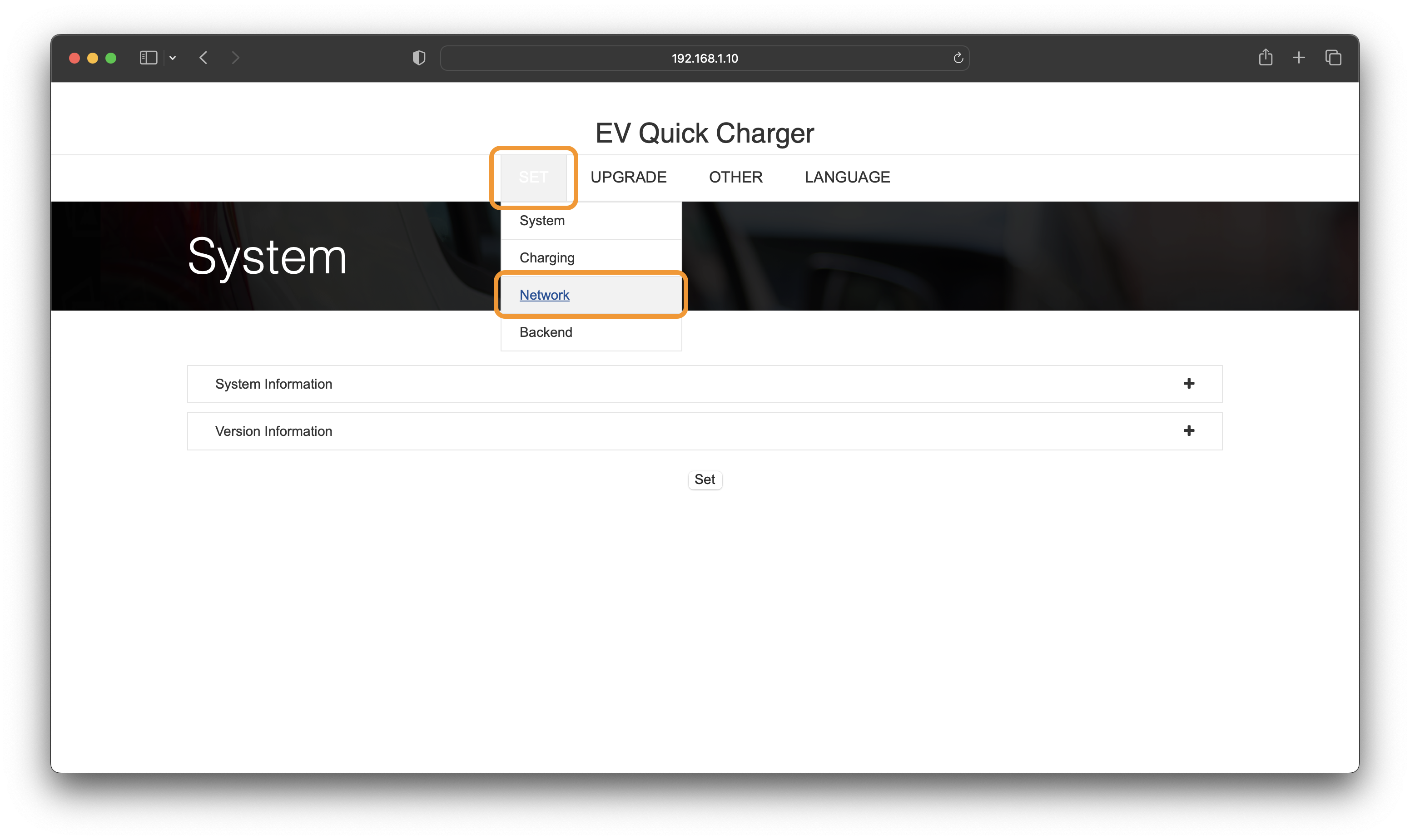

Step 1
Select SET at the top of the webpage to enter the settings page. Select Network to enter the network settings page.

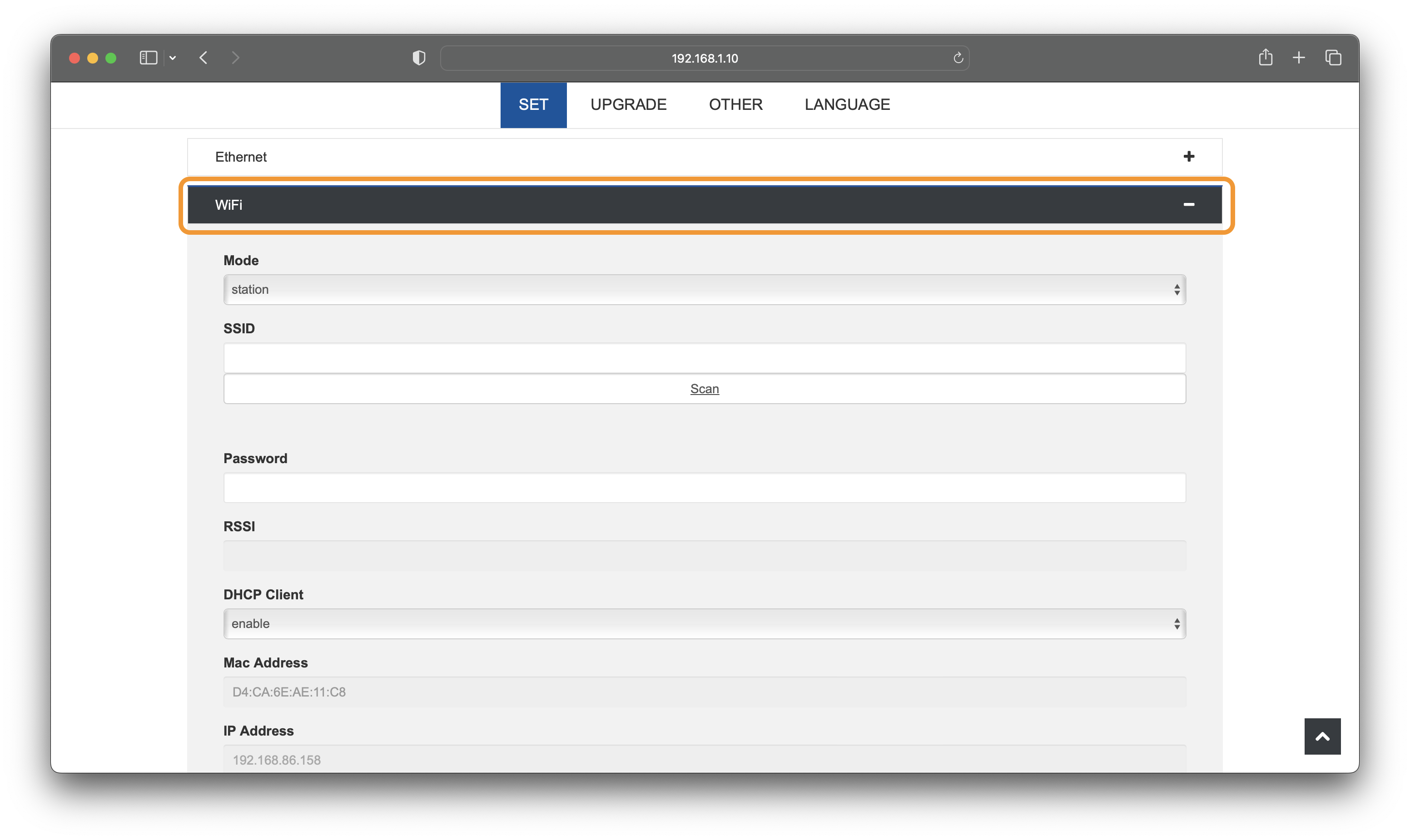

Step 2
Select Wi-Fi to enter the Wi-Fi Module settings page.

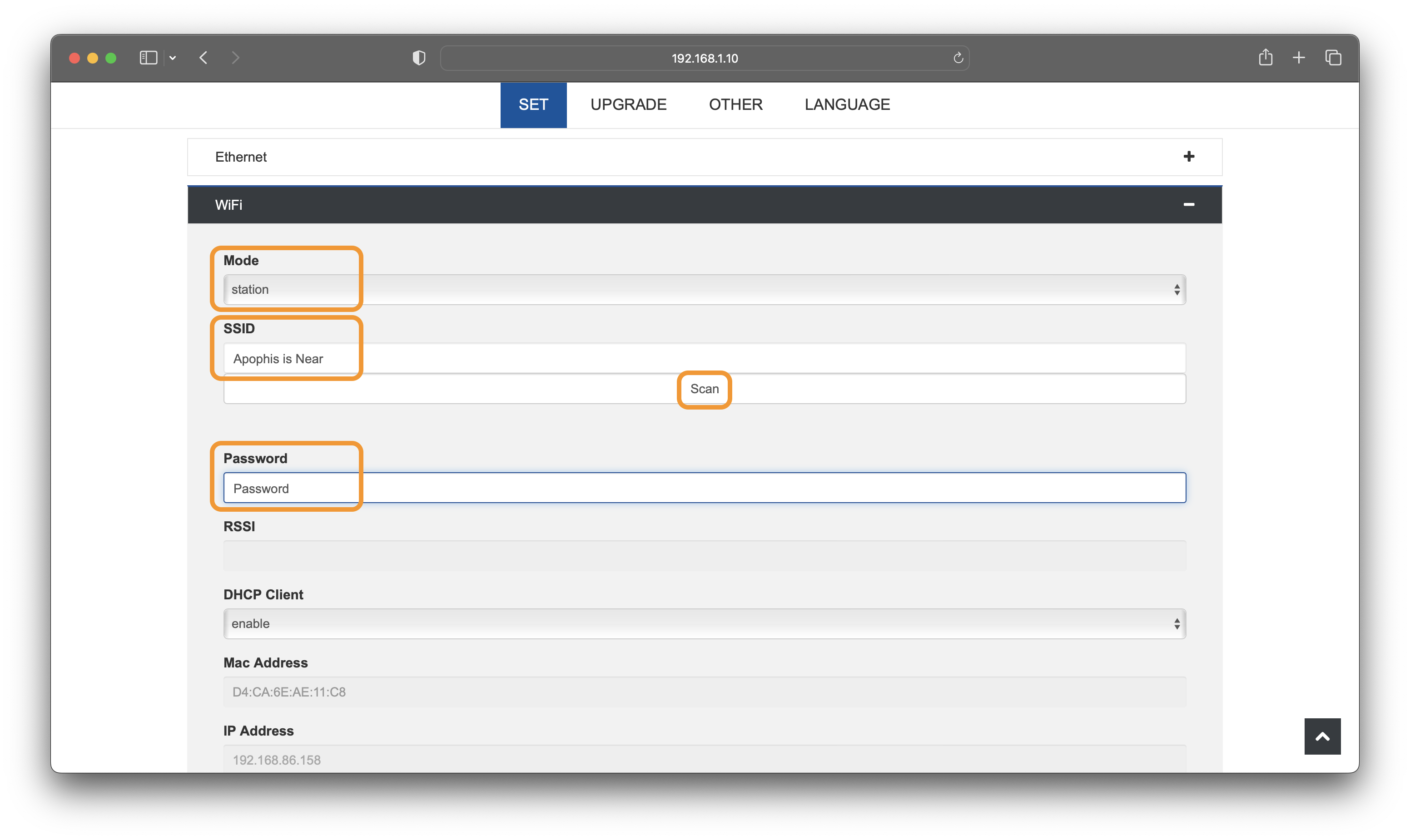

Step 3
Keep the Wi-Fi Mode set to Station and enter the Wi-Fi SSID name (or scan and search for it) and the Wi-Fi Password. Save settings by selecting Set.

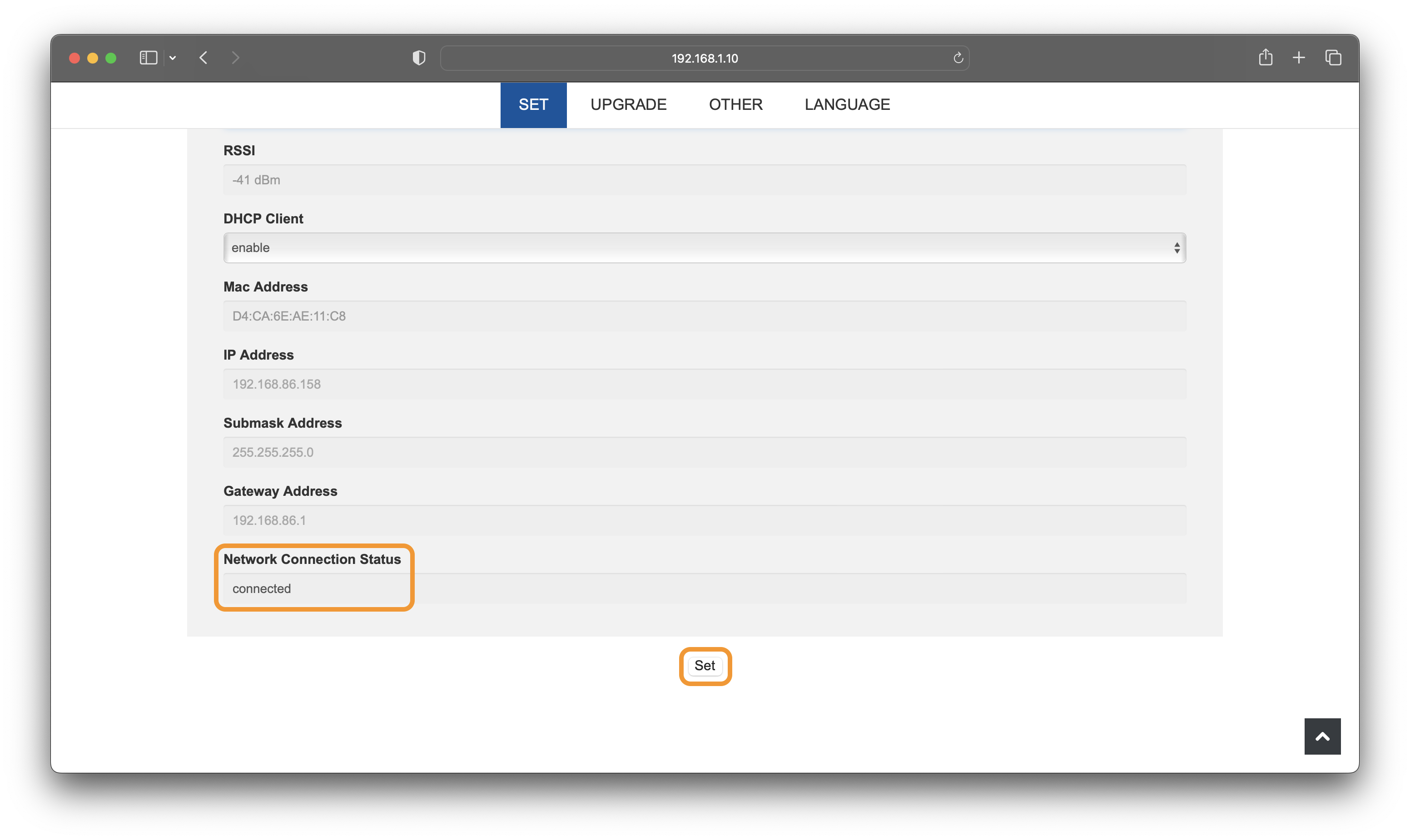

Step 4
After completion, click SET and wait until the setting completion window appears. Restart the charger. Charger should show Network Connection Status as connected if WiFi setup is successful.
