Siemens stations typically ship in Uncommissioned Mode. The station is ready for charging and will charge vehicles when they are connected, but the station is not connected to Noodoe for monitoring or payment processing. Below are excerpts from VersiCharge 48 A AC UL EV Charger | Installation and Operations Manual

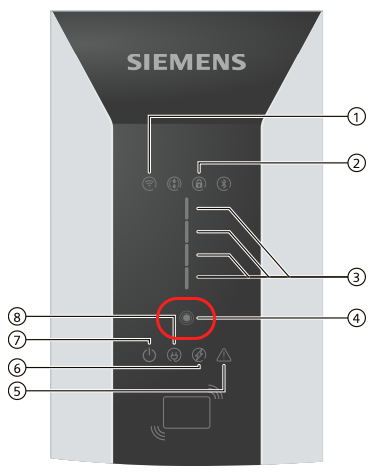

| Vertical Status LED | Description | Charger Status |
|---|---|---|
| Three LEDs of the Vertical Status LEDs light up green and the top LED pulses purple. | Uncommissioned Mode
|
How to Factory Reset to Uncommissioned Mode
Switching the power supply off for 15 seconds, then back on. After the restart, you have 30 minutes to reset the charger to factory settings.
NOTE: Make sure that booting (Vertical Status LEDs pulse orange, increasing in segments) is complete after the restart and the charger is ready for operation (Vertical Status LEDs light up green).
Vertical Status LED Description Status Orange color
Vertical Status LEDs pulse, increasing in segmentsBooting after the restart. Green color
Vertical Status LEDs light upREADY FOR FACTORY RESET - Press and hold the touch button (4) for 15 seconds.
- The Vertical Status LEDs will pulse purple, increasing in segments. The start of the reset process is signaled by a beep. The station will now factory reset (this takes approximately 15 minutes).
-
When the factory reset is complete, the boot sequence starts. Vertical Status LEDs pulse orange, increasing in segments.
- The factory reset is complete and the charger goes into Uncommissioned Mode. The station is ready for offline charging. Three LEDs light up green, the top LED pulses purple.
