Reference Documentation
Zerova AW32 (Noodoe AC30P) Manual
Zerova AX48/80 (Noodoe AC11/19P) Manual
Recommended Tools
- Torx T20 Screwdriver
- Laptop with ethernet capabilities, or with adapter for ethernet
- RJ45 Ethernet cable
Logging into the charger
Follow the Web Portal connection steps for Zerova equipment in this article: Zerova - Web Portal Connection
Changing OCPP Settings

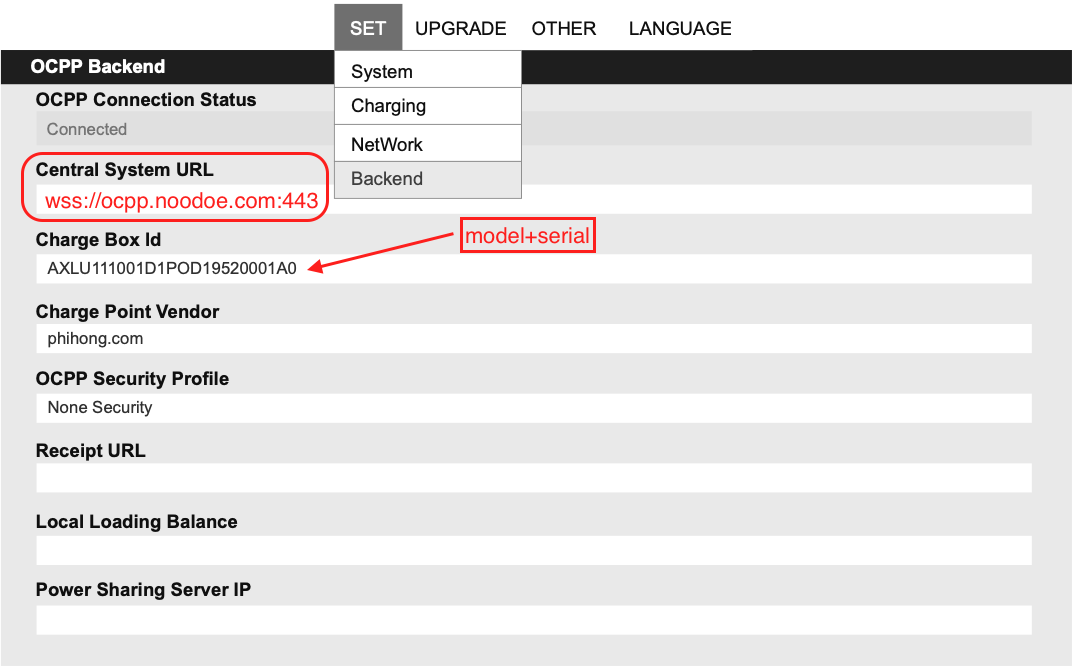

Click on SET > Backend to bring up the following screen.
Confirm the following settings;
| Central System URL | wss://ocpp.noodoe.com:443 |
| Charge Box Id |
model+serial (e.g. if model number is ABC, and serial number is 123, Charge Box Id will be ABC123) |
Scroll down to the bottom of the page and click Set, then reboot the charger.
If the OCPP connection is successful, you will see Connected under OCPP Connection Status.
Once this is complete, follow the steps on the appropriate Noodoe Commissioning Manual to bind the station to a Noodoe QR code and commission it to a site.
