Step 1: Get the Wallbox App & Sign Up
- Download the Wallbox app from the Play Store (Android) or App Store (iOS).
- Open the app and create an account using your email address.
- Once signed up, you'll be taken to the home screen.
Step 2: Add Your Charger
- Open the Wallbox app
- Tap the + (plus) button to add a charger. The QR scanner will open.
-
Scan the QR code located on the left side of your charger. The serial number and unique identifier will be filled in automatically.
NOTE: Do not scan the Noodoe QR code; this is for Noodoe EV OS.
- Select your state or region, then tap Add to complete the process
Step 3: Connect the Charger to Wi-Fi
- On the home screen, tap the charger you want to configure. This will open the charger’s details page.
- Tap the settings icon (gear) in the top-right corner.
- Tap Network then Wi-Fi.
- Tap Use Bluetooth to allow the app to connect to your charger.
- Once paired, select your Wi-Fi network. The charger will now connect to your selected network.

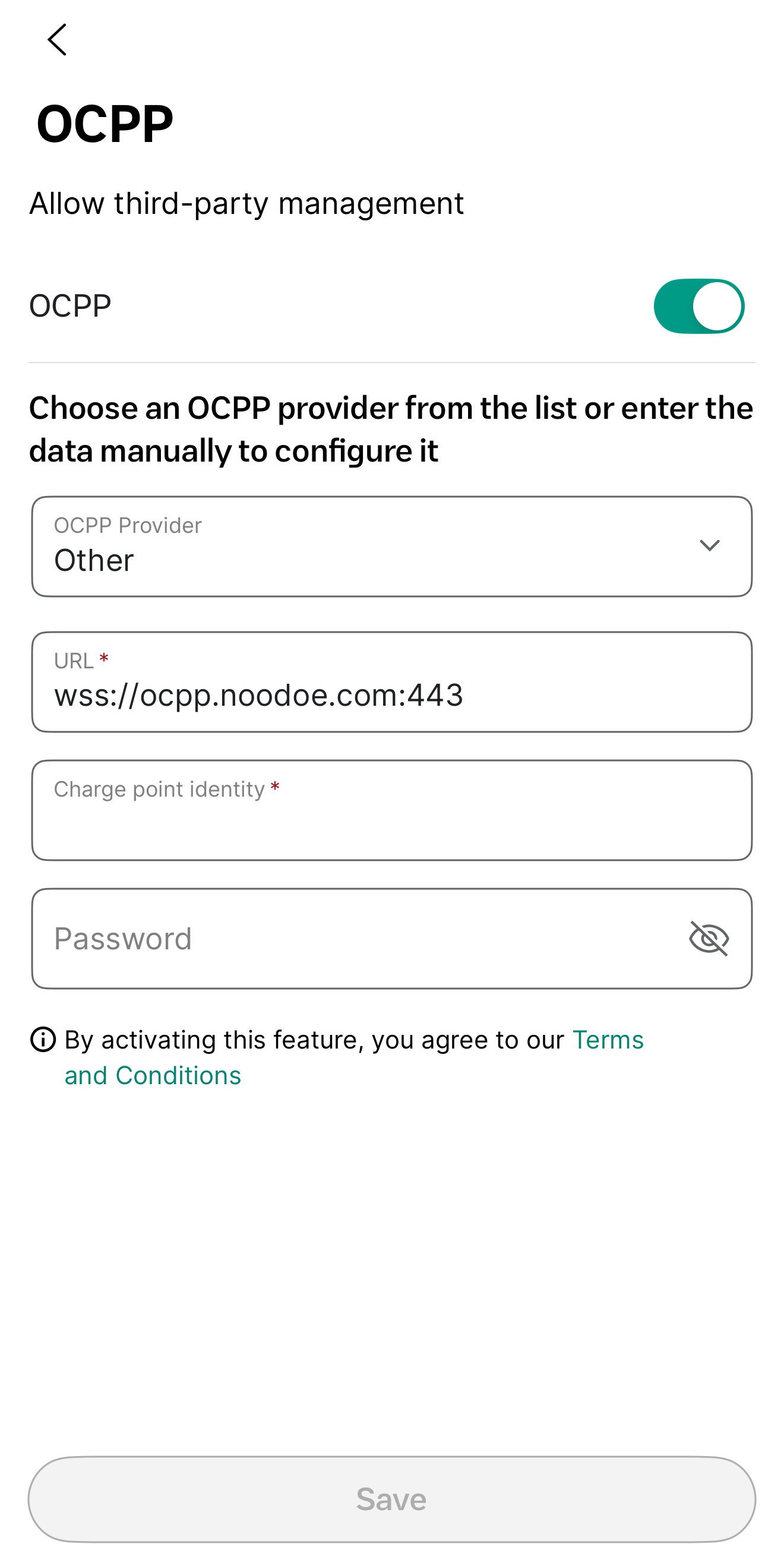

Step 4: Configure OCPP Settings
- On the home screen, tap the charger again.
- Tap the settings icon (the gear) in the top-right corner.
- Scroll down and tap OCPP.
- In the OCPP Provider field, select Other.
- In the URL field, enter wss://ocpp.noodoe.com:443
- In the Charge Point Identity field, enter the charger’s serial number (i.e. 123456)
