Connecting to the Web Portal

The process of connecting to the web portal for Zerova stations follows these general steps:

1. Establishing a connection to the station
   1. The method to connect to your station is always ethernet.
   2. Ensuring your device is configured with a specific IP, not DHCP.
2. Navigating to the web portal in your preferred web browser
   1. The login credentials and web portal URL are the same between most models.

Device Configuration

Zerova supports a specific IPv4 address. Ensure your TCP/IP settings on your computer are configured with the following.

How to Change TCP/IP settings on Windows

How to Change TCP/IP settings on Mac

Connecting from your Device to the Station

You will connect to these stations using ethernet.

NOTES:

• Your device may notify you that this connection has no internet, this is intended as your connection is only local.

Web Portal URL address

Once you have successfully connected to the station, you will need to navigate to your preferred web browser and enter the following address:

• Web Portal URL Address: 192.168.1.10

NOTES:

• You may be prompted with a warning from your browser that this connection is not secure, this is intended as the web portal is hosted by the station locally. To continue you may need to expand your options by selecting Advanced and/or Proceed depending on your browser.

Login Credentials

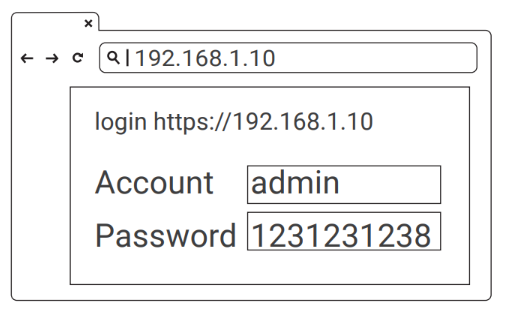

You will be prompted to enter the login credentials as seen below- these are the same across LiteOn models.
