AC7LC User Manual

Tools Necessary

• Torx T20 Screwdriver
• Laptop with ethernet capabilities, or with adapter for ethernet
• RJ45 Ethernet cable

Installing the SIM Card

NOTE: The unit should be powered off when handling the SIM.

Step 1

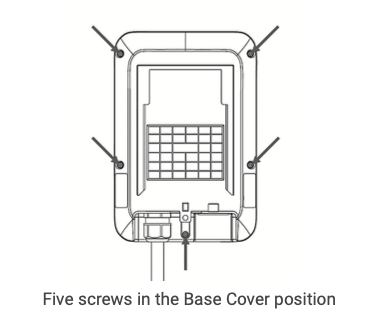

Disassemble the Top Cover and loosen the star screws (x5).

Step 2

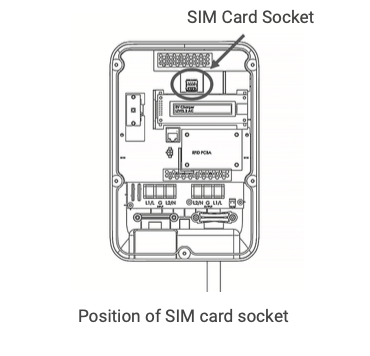

Locate the SIM card socket.

Step 3

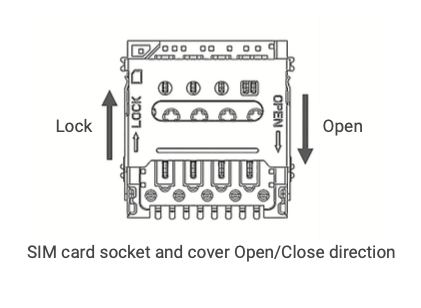

NOTE: The SIM Socket has a locking mechanism as shown:

1. Push down the cover to open the SIM card socket.
2. Prepare the SIM card. (Use a Micro SIM card, 15 mm x 12 mm)
3. Insert the SIM card.
4. Close the SIM card socket and push the cover in the locking direction to lock the cover.
5. Reassemble the top cover. Please refer to the following torque guidelines. SIM card installation is complete.

Logging into the charger

Step 1

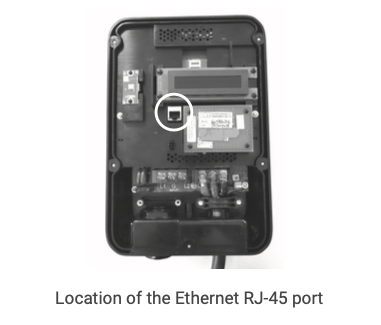

Connect the RJ45 cable to the charger. Connect the RJ45 cable to the laptop.

Step 2

Change your TCP/IP settings on your computer for automated IPv4 Dynamic Host Configuration Protocol (DHCP).

How to Change TCP/IP settings on Windows

How to Change TCP/IP settings on Mac

Step 3

Open a web browser and enter the AC7LC IP address: http://192.168.199.1.

Step 4

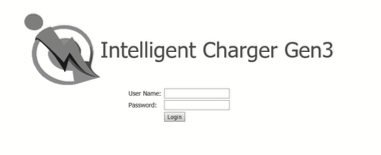

Login to the charger with the default credentials;

• User Name: admin

• Password: howru2RU2IC3

Setting the Carrier APN

Step 1

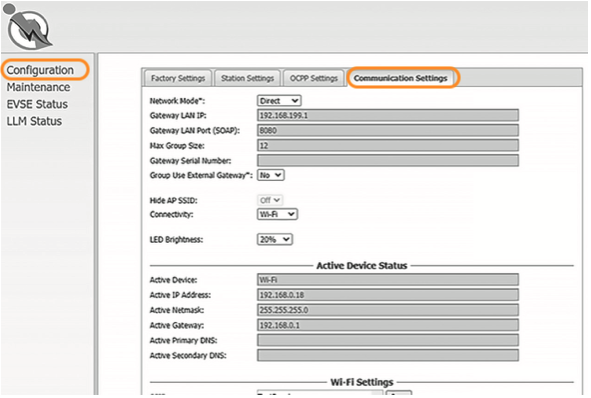

Navigate to Configuration > Communication Settings

Step 2

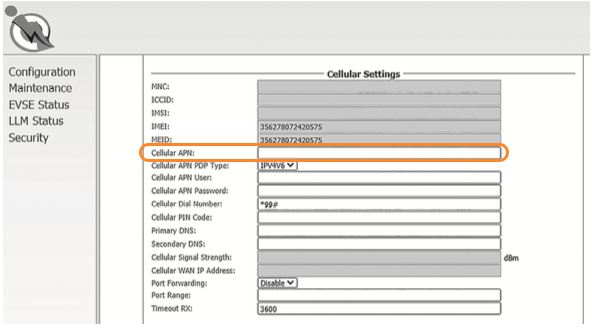

Scroll down to Cellular Settings. Set the Cellular APN appropriately. Click the Apply button at the bottom once complete.

Typical APN settings for Noodoe provided SIM cards are:

Additional APNs can be found here: SIM Card APN / Carrier APNs.

Step 3

Restart the charger. If SIM setup is successful, Cellular Signal Strength should show a value in dBm.

NOTE: After rebooting, the unit can take ~5 minutes to read the SIM ICCID, and another ~5 minutes to establish a signal strength.
