AC11P Manual

Tools necessary

• Laptop with ethernet capabilities, or with adapter for ethernet
• RJ45 Ethernet cable
• Slotted head screwdriver for M4
• Phillips screwdriver for M4-M6
• Torx/T30 L-Wrench

Replacing the SIM

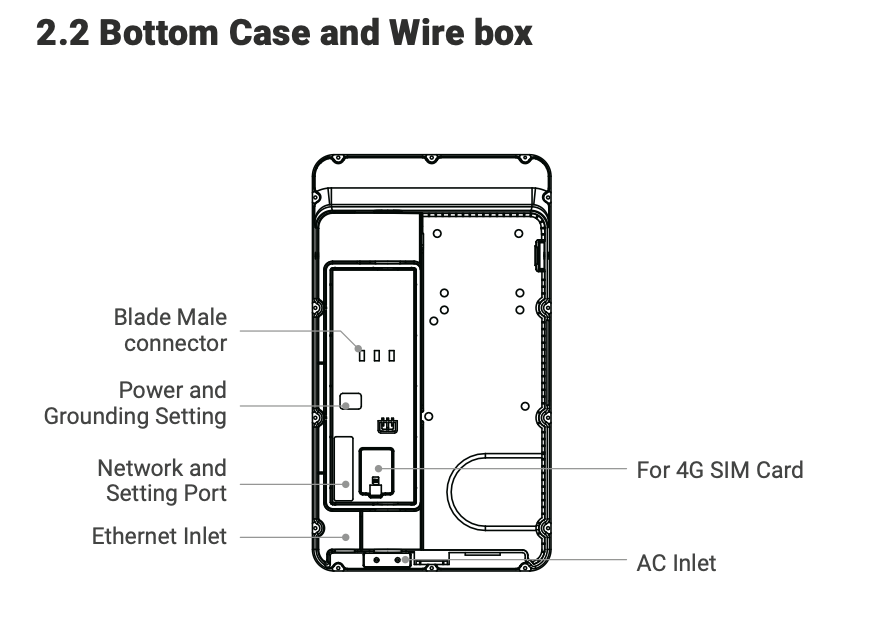

If the charger is already installed, shut off power and remove the front box. Locate the SIM card slot on the front case, as shown in the diagram below.

Remove the existing SIM and replace with the new SIM card.

Logging into the station

Step 1

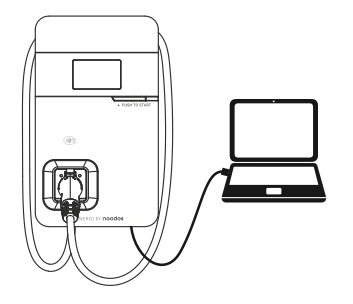

Connect the RJ45 cable to the station. Connect the RJ45 cable to the laptop.

Step 2

Change the IP Address on your computer by accessing the network card settings. Change the TCP / IP automatic IP to fixed IP.

• • IP Address: 192.168.1.1
  • Subnet Mask: 255.255.255.0

How to Change TCP/IP settings on Windows

How to Change TCP/IP settings on Mac

Step 3

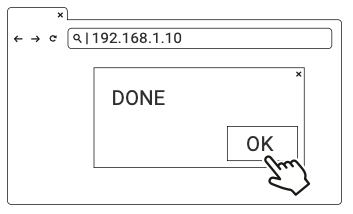

Open a browser and enter IP Address 192.168.1.10 to login into the setup page. Use the following credentials to login.

• Account: admin
• Password: 1231231238

Setting the Carrier APN

Step 1

Select "SET" at the top of the webpage to enter the settings page. Select “Network” to enter the network settings page.

Step 2

Select 3G/4G module to enter the 4G settings page.

Step 3

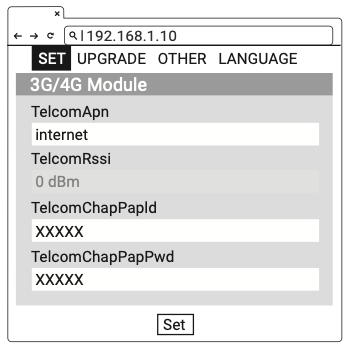

Enter the Carrier APN under TelecomApn and then click OK. Wait for the page to refresh. The page should now show RSSI, and the Network Connection Status should show Connected.

Typical APN settings for Noodoe provided SIM cards are:

Additional APNs can be found here: SIM Card APN / Carrier APNs.

Step 4

After completion, click SET. Wait for the setting completion window to appear. Click Confirm to finish the setting. Restart the charger.
